SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

Product Categories
Yuyao No. 4 Instrument Factory
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

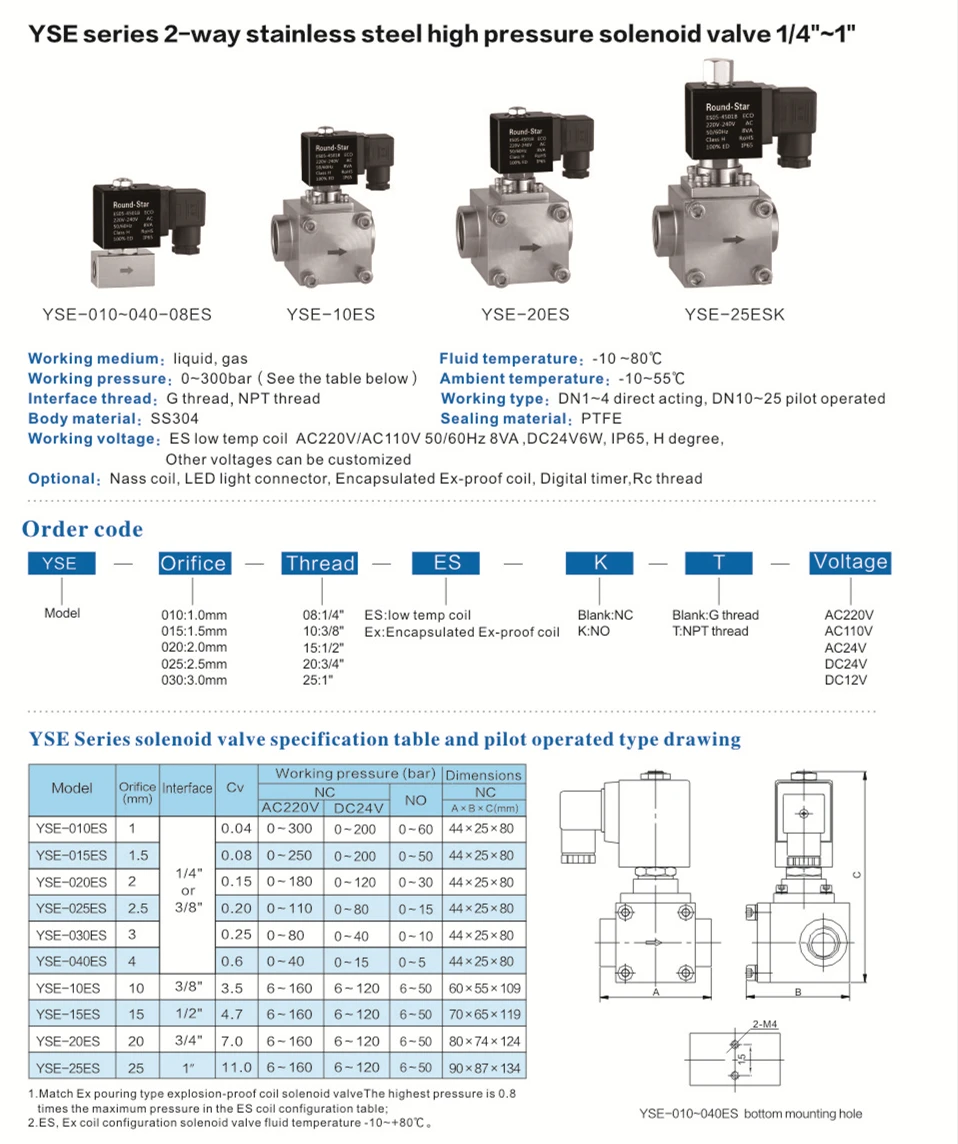

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

  • 1
  • 2
  • 3

Model Number : YSE-100

Brand Name : Round Star

Place of Origin : Zhejiang, China

MOQ : 1

Price : $59.99-99.99

Port size : G1/4"~1"

Structure : Pilot

Max pressure : 25MPA

Media : Gas

Temperature range : -10~80℃

Working pressure : 0-300bar

Valve material : SS304

Sealing material : PTFE

Interface : G thread, NPT thread

Working voltage : AC220V/AC110V 50/60Hz8VA, DC24V6W

Coil type : Nass coil from Germany

IP rating : IP65

H degree : Yes

Power consumption : 8VA (AC), 6W (DC)

Working type : Pilot operated (NC)

Contact Now

Products Description
SOLENOID VALVE
1) Medium:steam.water
2) Type:N/C
3) Material: Stainless Steel
4) Nass coil from Germany
5) sealer: PTFE
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
Working medium:
liquid,gas
Fluid temperature:
-10~80℃
Working type:
pilot operated ( NC )
Working pressure:
0-300bar(See the table below)
Valve body material:
SS304
Sealing material:
PTFE
Interface:
G thread.NPT thread
Working voltage:
ES low temp coi AC220V/AC110V 50/60Hz8VA,DC24V6W, IP65, H degree,Other voltages can be customized
Certifications
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
Company Profile
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
Performance testing equipment for solenoid valve
To supply qualified products,each solenoid valve has been tested strictly.
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
Automatic digital winding machine for the production of coil
We useautomatic digital high-speed winding machine for the production of coil. The machine is characteristic of parallel winding,
high precision and high speed.
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
Coil plastic capsulation workshop corner

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
Performance testing machine for solenoid coil
To guarantee the quality, each solenoid coil has been tested bin the aspects of resistor, laps, current, power and withstand
voltage.
German spectrometer
All the metal components of solenoid valve have been tested by OXFORD spectrometer to ensure the rightness of material, which
meets various requests for production
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
Iron-hand digital control lathe
High-tech iron-hand operating, each operator can manage more than 5 sets digital control lathes,which greatly improve the
production efficiency and sharply reduce the production cost. So we can offer more discount to the customer.
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
High performance digital automatic testing machine for solenoid valve
Each solenoid valve has been tested of high pressure, low pressure,leakage and so on, to ensure that we can offer satisfied
products for our customers.
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
solenoid valve assembly line
All the workshops are equipped with air conditioner, to create a clean, comfortable working environment for the employees.
Exhibition
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
EXPO exhibition in shanghai

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
AQUATECH in beijing

Customer Photos
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

AQUATECH IN Amsterdam

Packing & Delivery
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

Shockproof Bag to protect valve

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

Strong Cartons

1.English neutral packaging

2.with round star logo

3.with your logo (Charged)

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty

membrane outside protect rain

Package more than 40kgs,use
Fumigated wooden case or pallet.

SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4"~1" Port and 3 Years Warranty
