Home > Water Solenoid Valve >

Solenoid Timer Electric Timer with 24-240V AC/DC 4mA Current and IP65 Protection

Product Categories
Yuyao No. 4 Instrument Factory
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

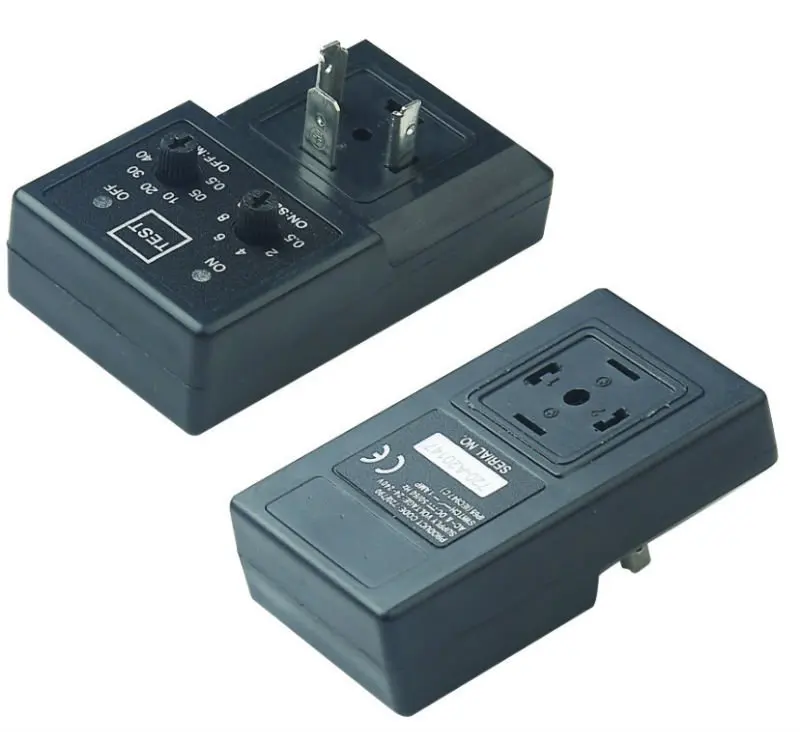

Solenoid Timer Electric Timer with 24-240V AC/DC 4mA Current and IP65 Protection

Model Number : YS-3800

Brand Name : round star

Place of Origin : China

MOQ : 1

Supply voltage : 24~240V AC/DC

Max current : 4mA

Structure : Diaphragm

Power type : Solenoid

Operating temperature : -40 -60°C

Time on : 0.5-10 sec

Time off : 0.5-45 min

Connector type : DIN 4650A

Protection class : IP 65

Voltage range : 24-240VAC/DC 50/60HZ

Absorption current : 4MA

Time on range : 0.5-99 sec

Time off range : 0.5-99 min

Connector standard : DIN 43650A

Timer type : Analog and digital

Contact Now

electronic timers:
supply voltage:24~240Vm AC/DC
max current : 4mA

Analog and digital electronic interval timer

A timer is a specialized type of clock. A timer can be used to control the sequence of an event or process. Whereas a stopwatch counts upwards from zero for measuring elapsed time, a timer counts down from a specified time interval, like an hourglass. Timers can be mechanical, electromechanical, electronic (quartz), or even software as all modern computers include digital timers of one kind or another. When the set period expires some timers simply indicate so (e.g., by an audible signal), while others operate electrical switches, such as a time switch, which cuts electrical power.

drain valve:

Solenoid valve plus timmer

TYPE RSX-720 RSX-2000 RSX-11
SUPPLY VOLTAGE 24-240VAC/DC 50/60HZ 110-240VAC/DC 50/60HZ 24-240VAC/DC 50/60HZ
ABSORPTION 4MA 4MA 4MA
OPERATING TEMP. -40 -60 -10~55 -40-60
TIME ON 0.5-10 SEC 0.5-99 SEC 2 SEC
TIME OFF 0.5-45 MIN 0.5-99 MIN 0.5-120 MIN
CONNECTOR AND GASKET DIN 4650A DIN 43650A DIN 43650B
CLASS PROTECTION IP 65 IP 65 IP 65

Solenoid Timer Electric Timer with 24-240V AC/DC 4mA Current and IP65 Protection

--YS-720: Analog and digital electronic interval timer

Solenoid Timer Electric Timer with 24-240V AC/DC 4mA Current and IP65 Protection

--YS-2000: Analog and digital electronic interval timer

Solenoid Timer Electric Timer with 24-240V AC/DC 4mA Current and IP65 Protection

--YS-11: Analog and digital electronic interval timer


Product Tags:

24-240V AC/DC Solenoid Timer



4mA Current Electric Timer



IP65 Protection Digital Timer
